Working current: 25A

Rated insulation voltage: 690V

Normal working temperature: -5°C ~ +40°C

Reset method: manual/automatic reset

Installation method: plug-in

Reminder:

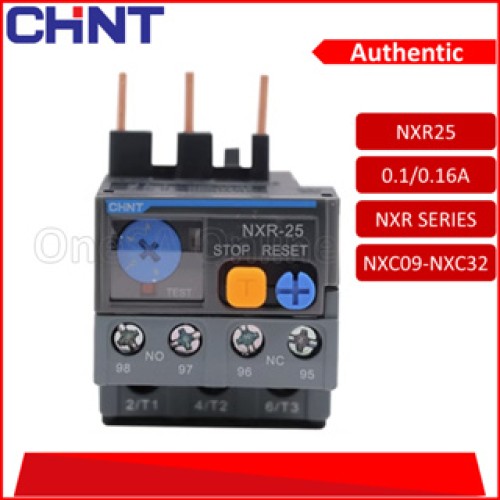

NXR series thermal overload relays (hereinafter referred to as thermal relays) are suitable for long-term work or intermittent operation of AC motors with AC 50Hz/60Hz, voltage to 690V, and setting current of 0.1~630A.

The thermal relay also has the functions of temperature compensation, action indication, automatic and manual reset, stop and test, etc. The product performance is stable and reliable. The thermal relay can be plugged in and installed with the contactor or installed independently.

Conform to standards: GB14048.4/IEC 60947-4-1, GB 14048.5/IEC 60947-5-1.

Structural features

Three-phase bimetallic type, or electronic type (NXR-200, NXR-630), tripping level is 10A

With phase failure protection

With continuous adjustable device for setting current

With temperature compensation

With action instructions

Has a testing organization

Has a stop button

With manual and automatic reset button (NXR-200, NXR-630 only manual reset)

With electrically separable one normally open and one normally closed contact

Installation method: plug-in installation with contactor (NXR-12, 25, 38, 100) or independent installation (NXR-200.630)
