1.1 INTRODUCTION

Contact blocks are an integral part of selector switches. The contact block can have normally open (NO) and/or normally closed (NC) configurations.


1.2 USES

Single circuits contain a contact block of either one normally open or one normally closed circuit. For applications that need only one contact, a single circuit is an efficient, inexpensive way to get the job done. Dual circuits offer two contacts in a single contact block. The combinations include:

1 normally open and 1 normally closed contact

2 normally open contacts

2 normally closed contacts

Combinations with special delayed opening or early closing contacts

Dual circuit contact blocks save space in enclosures and add twice the functionality to a switch because one switch operates two circuits. You can add multiple contact blocks to increase functionality. For example, you can mount 4 dual circuit blocks to a 30mm pushbutton for a total of 8 circuits.



Rated Insulation Voltage
600V
Rated Current
10A
Rated Voltage
24V / 120V / 240V /380V
AC (50/60Hz) Resistive Load (AC-12)
10A /  10A /   6A   / 2A
                      Inductive Load (AC-15)
10A /   6A /   3A   / 1.9A
DC                 Resistive Load (DC-12)
8A   / 2.2A /  1.1A
                      Inductive Load (DC-15)
4A   / 1.1A /  0.55A

Weight
Pcs/ Packing 10Pcs/ Packing
Weight Per Packing (g) 0.10KG/ 100g
Weight Per Pc (g) 0.01KG/ 10g

Write a review

Note: HTML is not translated!
    Bad           Good

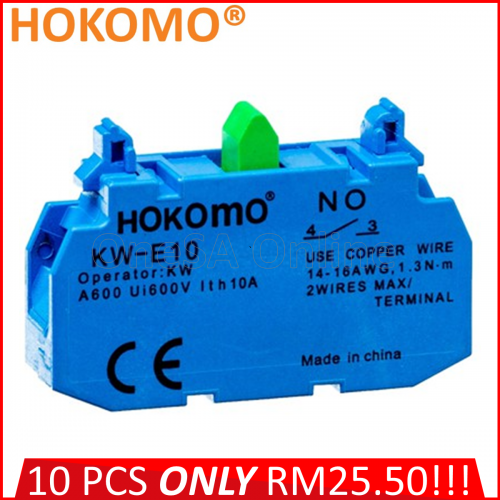

Single Contact Block

  • Brand: HOKOMO
  • Product Code: KW-E
  • Availability: In Stock
  • RM2.80
